Darmok Power Distribution

These pictures show the power distribution system used in one of the cabinets to hook up two power supplies to the same power switch.

Darmok_power_01s.jpg Darmok_power_02s.jpg Darmok_power_03s.jpg Darmok_power_04s.jpg

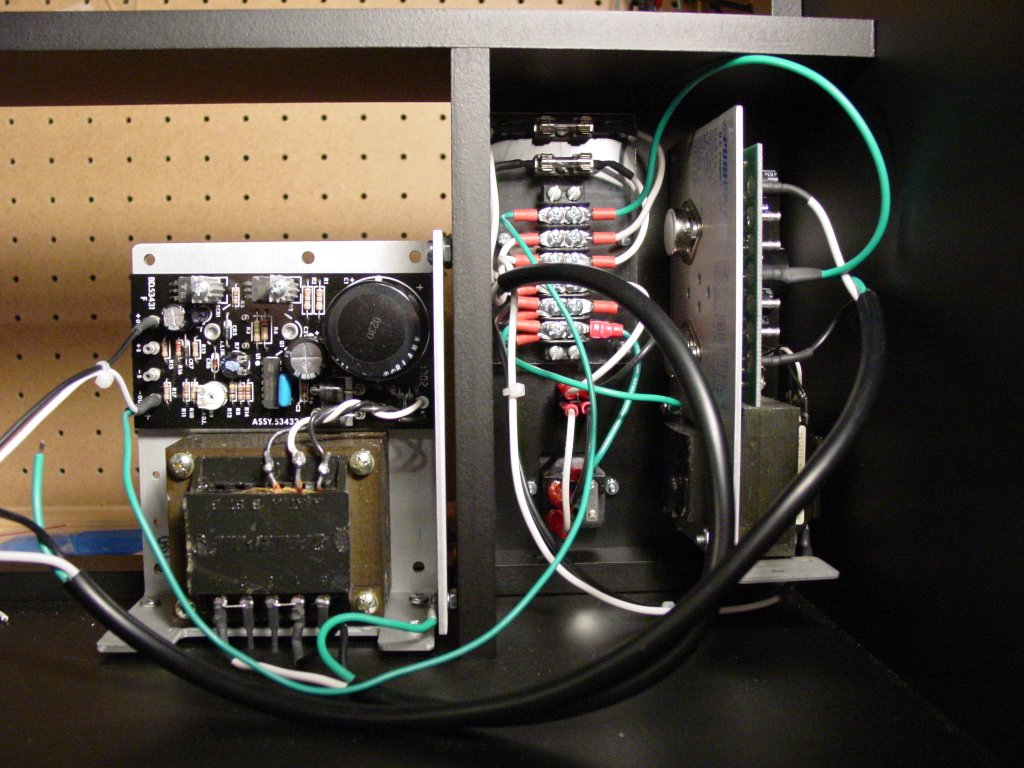

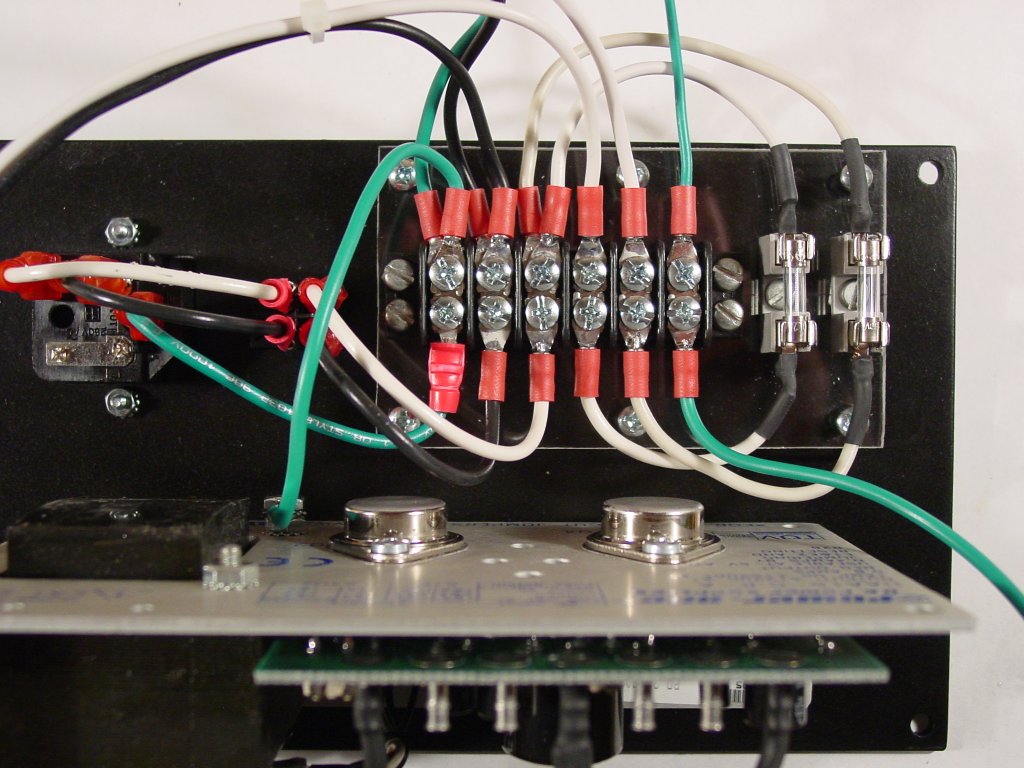

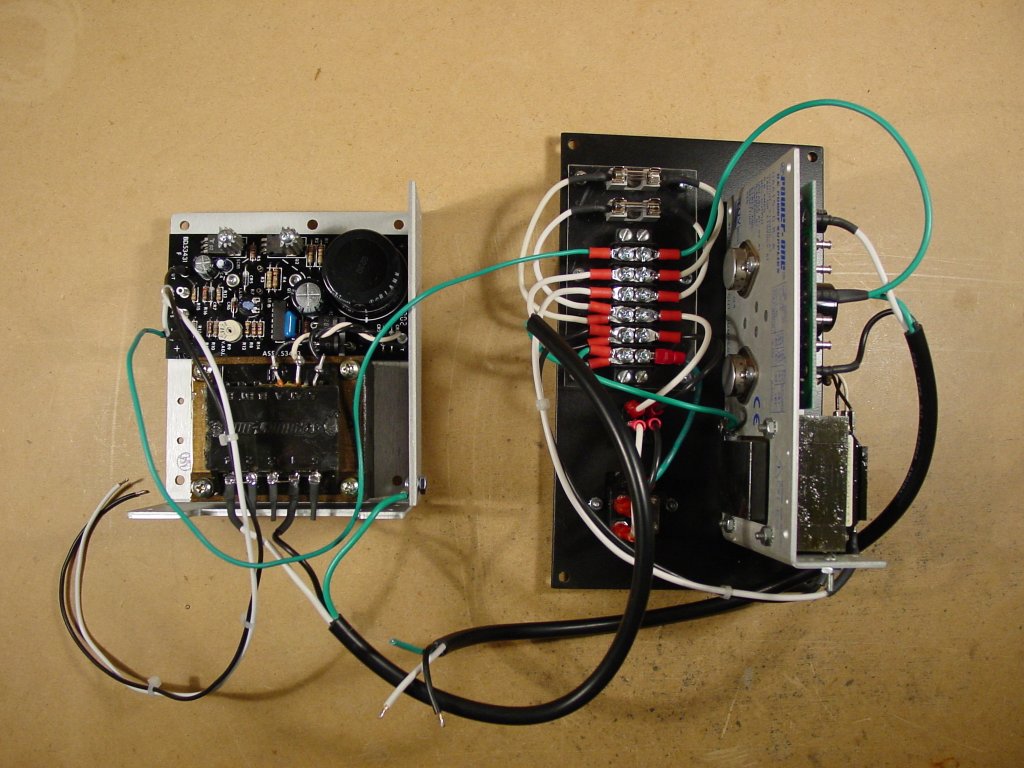

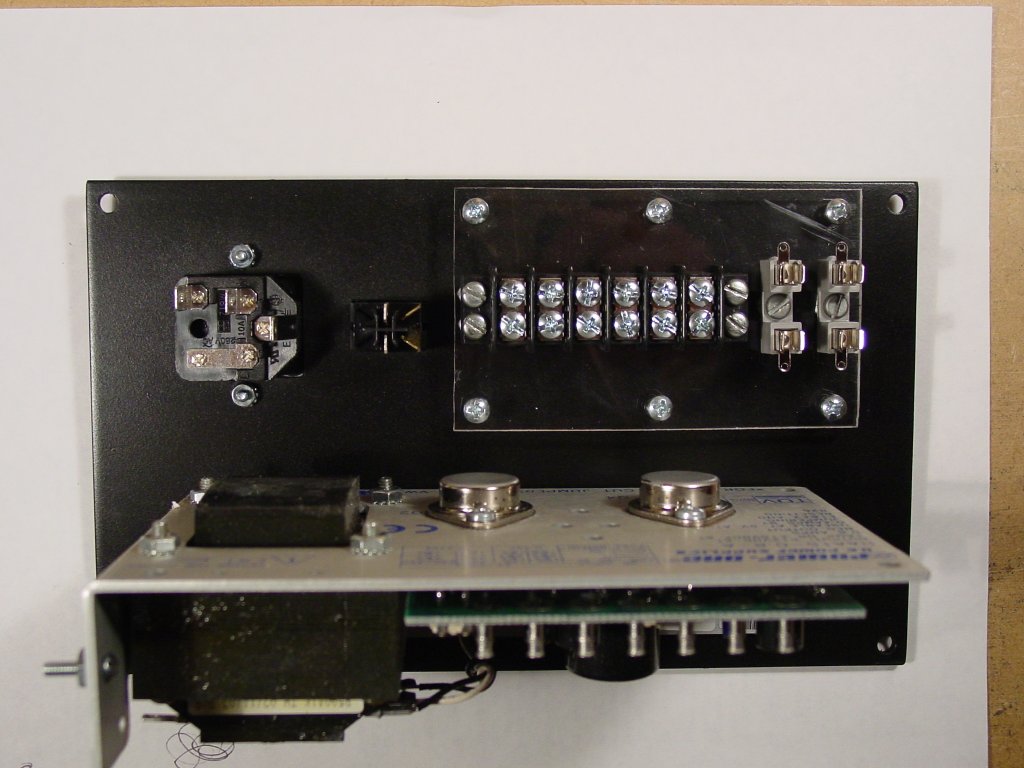

MOTM-900 with terminal block and fuse holders. Terminal block wiring. Power supply wiring. Installed inside cabinet.
